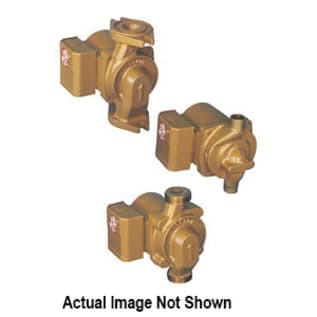

Bell & Gossett 103259LF NBF™ Wet Rotor Circulator Pump, 10 gpm Flow Rate, 115 VAC, 1 ph
Bell & Gossett Wet Rotor Circulator Pump, Series: NBF™, 10 gpm, 15 ft Maximum Head, 52 W, 115 VAC, 0.46 A, 60 Hz, 1 ph, 150 psi Maximum, 2800 rpm Motor, In-Line Mount, 230 deg F, 4-7/8 in W x 5-7/32 in D x 5 in H
Documents
- 100 percent lead-free bronze pump body NBF, Noryl impeller, ceramic shaft and double-sintered carbon bearings
- Pumps shall be of the horizontal system lubricated type specifically designed and guaranteed for quiet operation
- Pumps shall have a ceramic shaft supported by carbon bearings
- Pump body shall be lead-free bronze for NBF circulators
- Motor stator to be isolated from circulating fluid through use of stainless steel can
- Motors shall be non-overloading at any point on the pump curve
- Contains less than 0.25% lead content by weight on wetted surface
- 1/2 in C
- Construction: Lead free bronze pump body, Noryl™ impeller, ceramic shaft, carbon bearings
- Standard/Approvals: ANSI/NSF 372|cULus Listed|CSA Certified|UL Listed
Bell & Gossett Wet Rotor Circulator Pump, Series: NBF™, 10 gpm, 15 ft Maximum Head, 52 W, 115 VAC, 0.46 A, 60 Hz, 1 ph, 150 psi Maximum, 2800 rpm Motor, In-Line Mount, 230 deg F, 4-7/8 in W x 5-7/32 in D x 5 in H
A series of in-line wet rotor circulation pumps designed specifically for quiet operation in open (potable) water systems. These pumps have 100% lead-free bronze bodies. Flanged, union and sweat models are available.
- Brand: Bell & GossettAmperage Rating: 0.46Dimensions: 4-7/8 in W x 5-7/32 in D x 5 in HFlow Rate: 10Frequency Rating: 60Maximum Head: 15Maximum Pressure: 150Motor Speed: 2800Mounting Type: In-LinePower Rating: 52Series: NBF™Temperature Rating: 230Voltage Rating: 115Phase: 1
