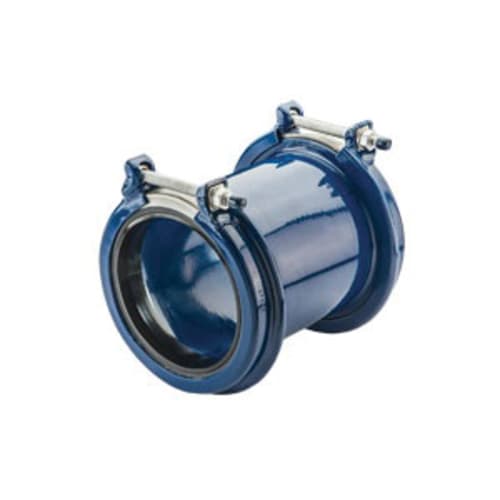

HYMAX® 860-56-0315-16 Coupler, 12 in Nominal, Carbon Steel
HYMAX® Coupler, 12 in Nominal, 10.8 in Length, 260 psi, -20 to 125 deg F, Carbon Steel, 16.6 in Dia
Documents
- 12.4 to 13.66 in pipel range
- 12.4 to 13.03 in before removal of inner layer
- 12.99 to 13.66 in after removal of inner layer
- (2) M12 bolt
- Suitable for all type of pipe like ductile iron, cast iron, steel, copper, PE, PVC, AC, GRP
- Patented hydraulically-assisted gasket with 2-stage sealing
- Lightweight construction enables fast and easy installation
- Allows 4 deg dynamic deflection on each end, reducing future pipe damage
- One product can connect pipes of two different materials
- Carbon steel end ring
- Steel center ring
- Stainless steel bridge
- Stainless steel spherical spacer
- Stainless steel rolled thread and anti-galling coating nut and bolt
- EPDM gasket
- Standard/Approvals: ASTM A53 Center Ring|ASTM A283/A283M End Ring|Hymax Meets or Exceeds Standards AWWA C-219|NSF 61|NSF 372
HYMAX® Coupler, 12 in Nominal, 10.8 in Length, 260 psi, -20 to 125 deg F, Carbon Steel, 16.6 in Dia
Wide-range HYMAX coupling, used for section replacement, connects two pipes of the same or different OD pipe diameters and materials, up to 2.1 in range.
- Brand: HYMAX®
